高端、新型
High-end / Advanced Equipment to make the process more precise
Introduce various
high-precision equipment according to demand.

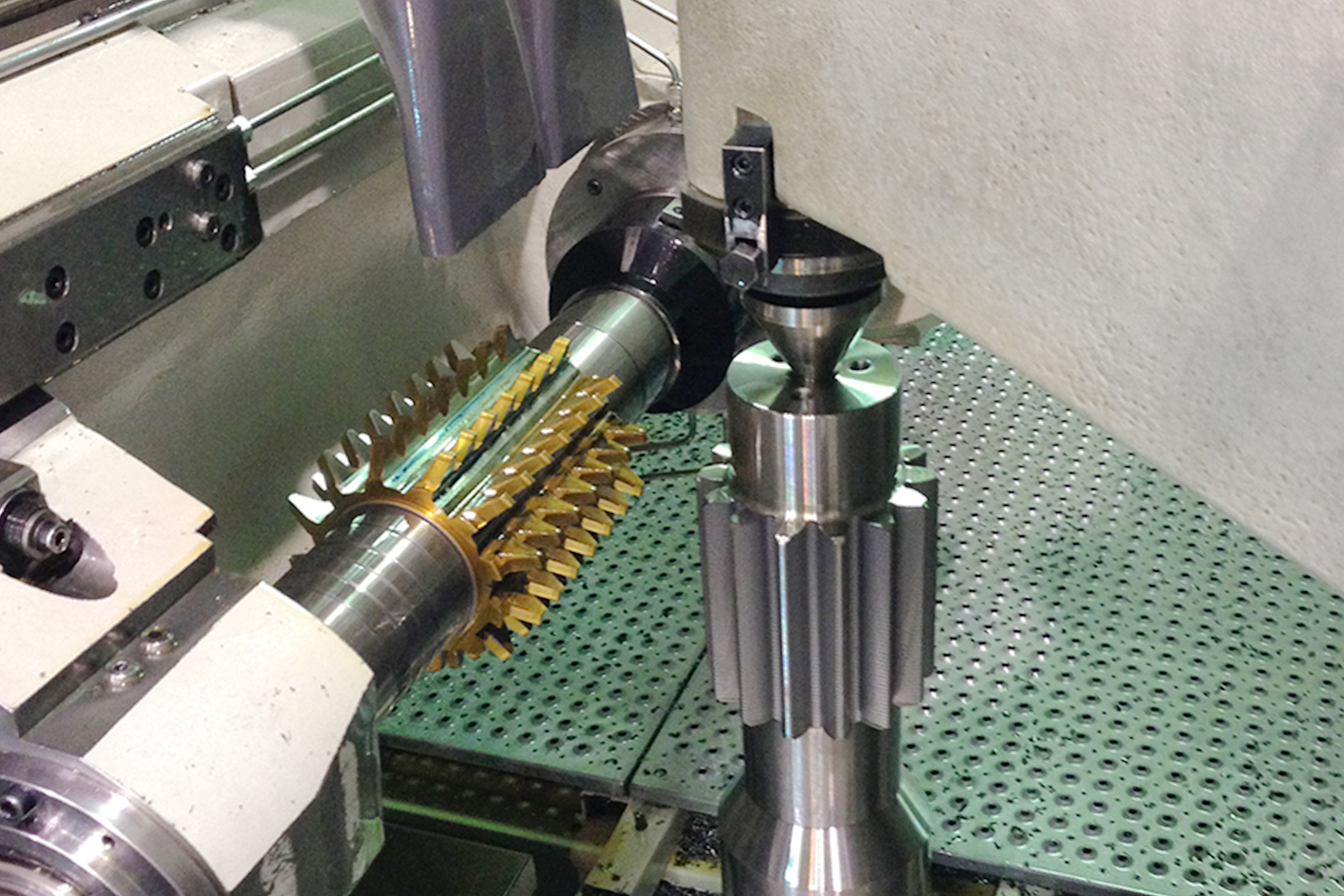

滾齒機
hobbing machines
×
| DEVICE | ITEM | WORKING RANGE | |
|---|---|---|---|
| SAIWA-MHD3 | HOBBING | 1M～6M | Max Φ 300 mm |
| SAIWA-600 | HOBBING | 1M～6M | Max Φ 600 mm |
| Gleason-Pfauter-900 | HOBBING | 2M～10M | Max Φ 800 mm |
| Gleason-Pfauter-900 | HOBBING | 2M～10M | Max Φ 800 mm |
| LORENZ-E30 | HOBBING | 3M～25M | Max Φ 3400 mm |
| Gleason-Pfauter-NC1000 | HOBBING | 2M～12M | Max Φ 1200 mm |
| Gleason-Pfauter-P1200 | HOBBING | 2M～25M | Max Φ 1200 mm |

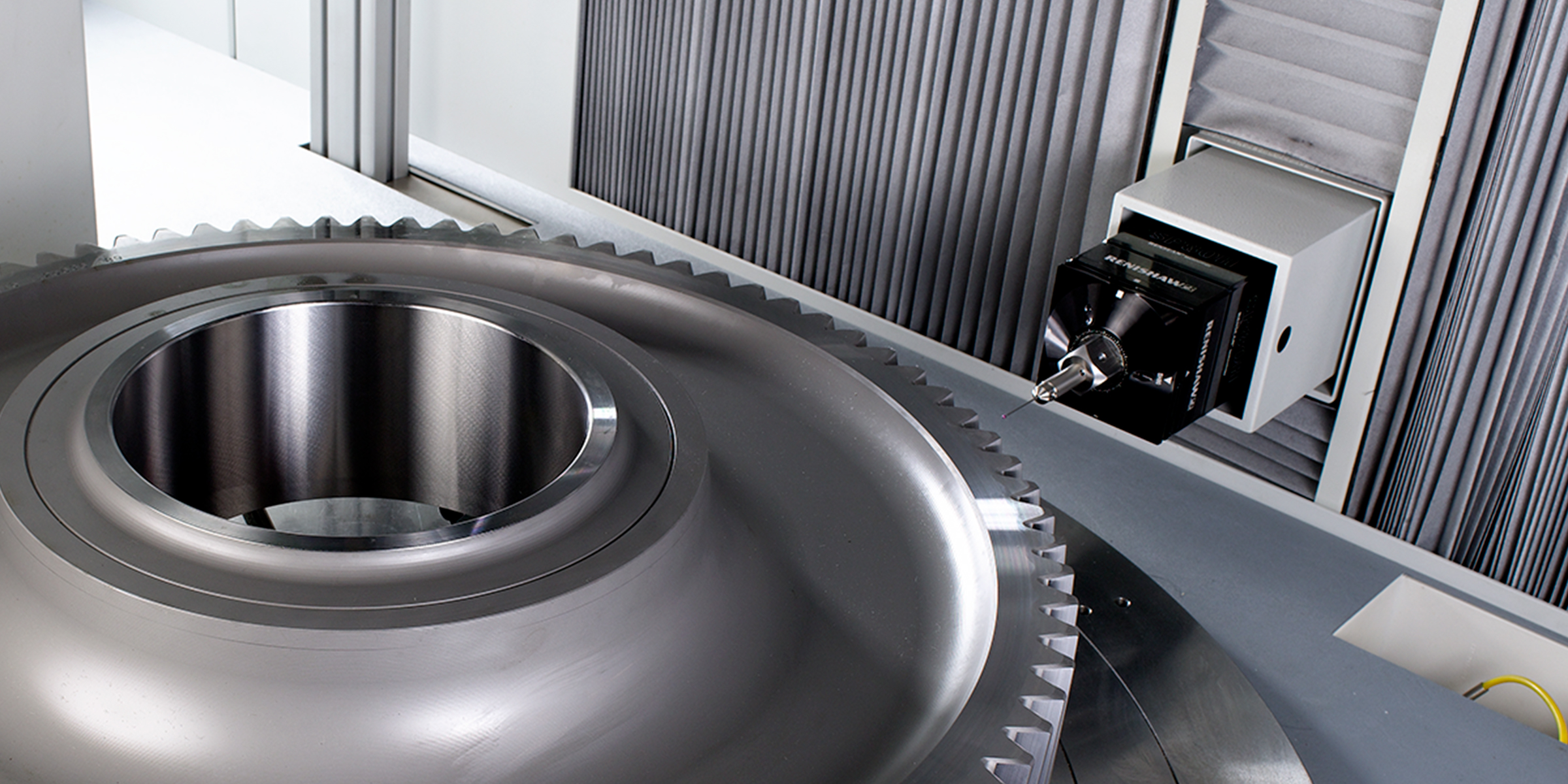

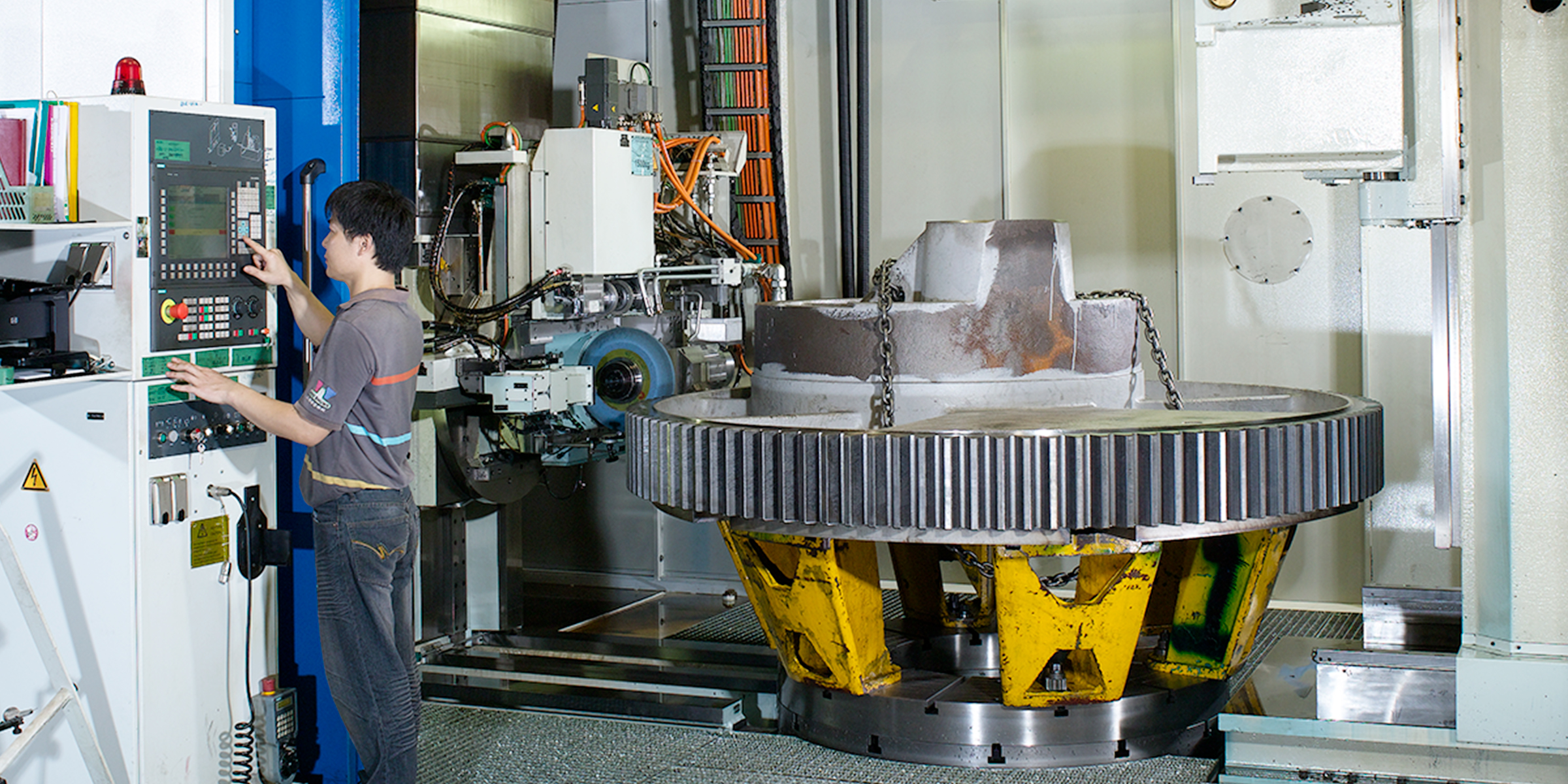

研磨機
grinding machines
×
| DEVICE | ITEM | WORKING RANGE | |
|---|---|---|---|
| Gleason-Pfauter 2000G-CNC | GRINDING | 2.5M～36M | Φ 100～Φ 2650 mm |
| Kapp-Niles ZP1200 | GRINDING | 2.5M～25M | Φ 100～Φ 1200 mm |
| Gleason-Pfauter P800G | GRINDING | 1M～24M | Φ 50～Φ 800 mm |
| LFG3540 | GRINDING | 2.5M～10M | Φ 50～Φ 300 mm |
| kapp-Niles ZE800 | GRINDING | 2.5M～20M | Φ 50～Φ 800 mm |

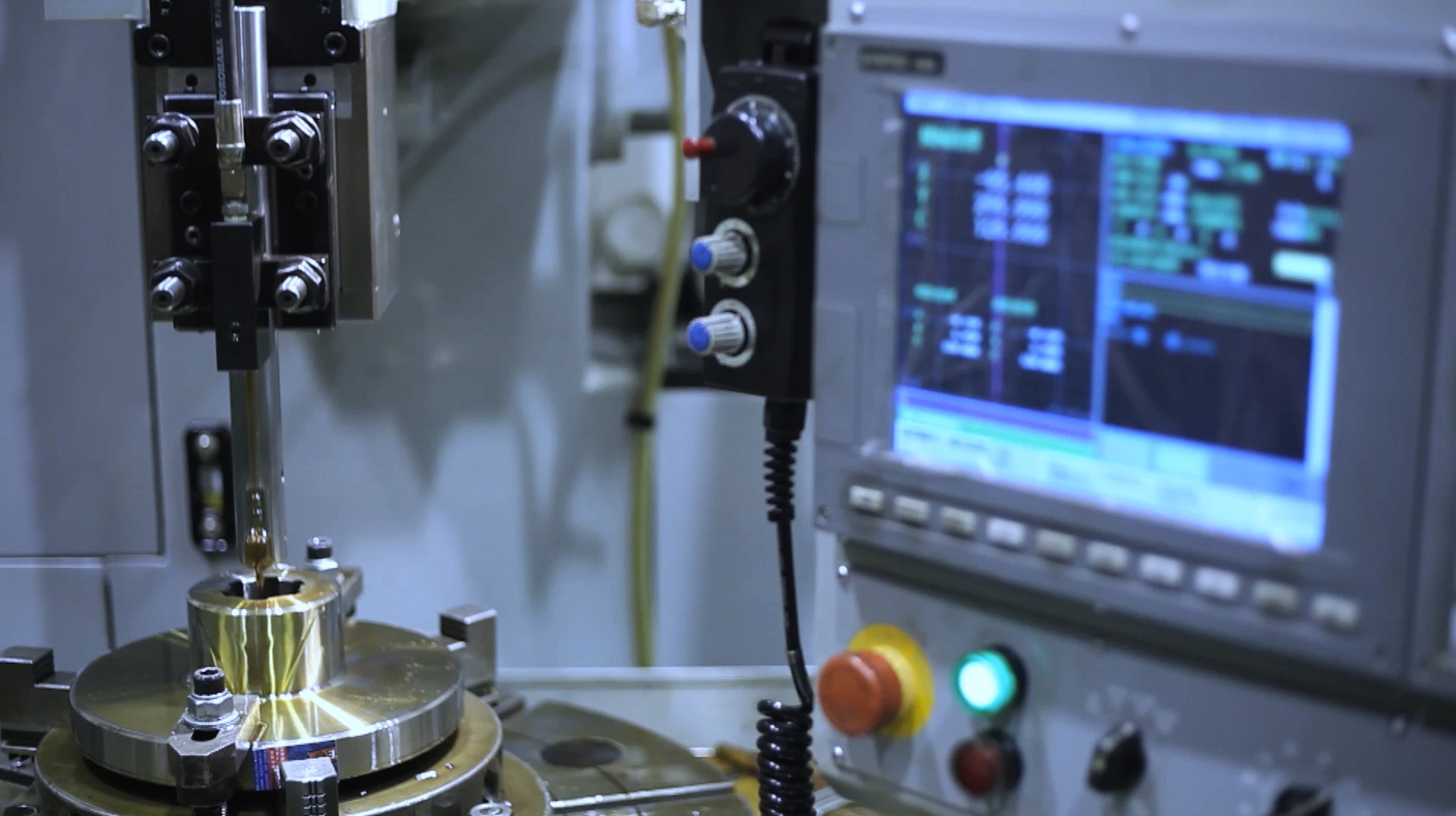

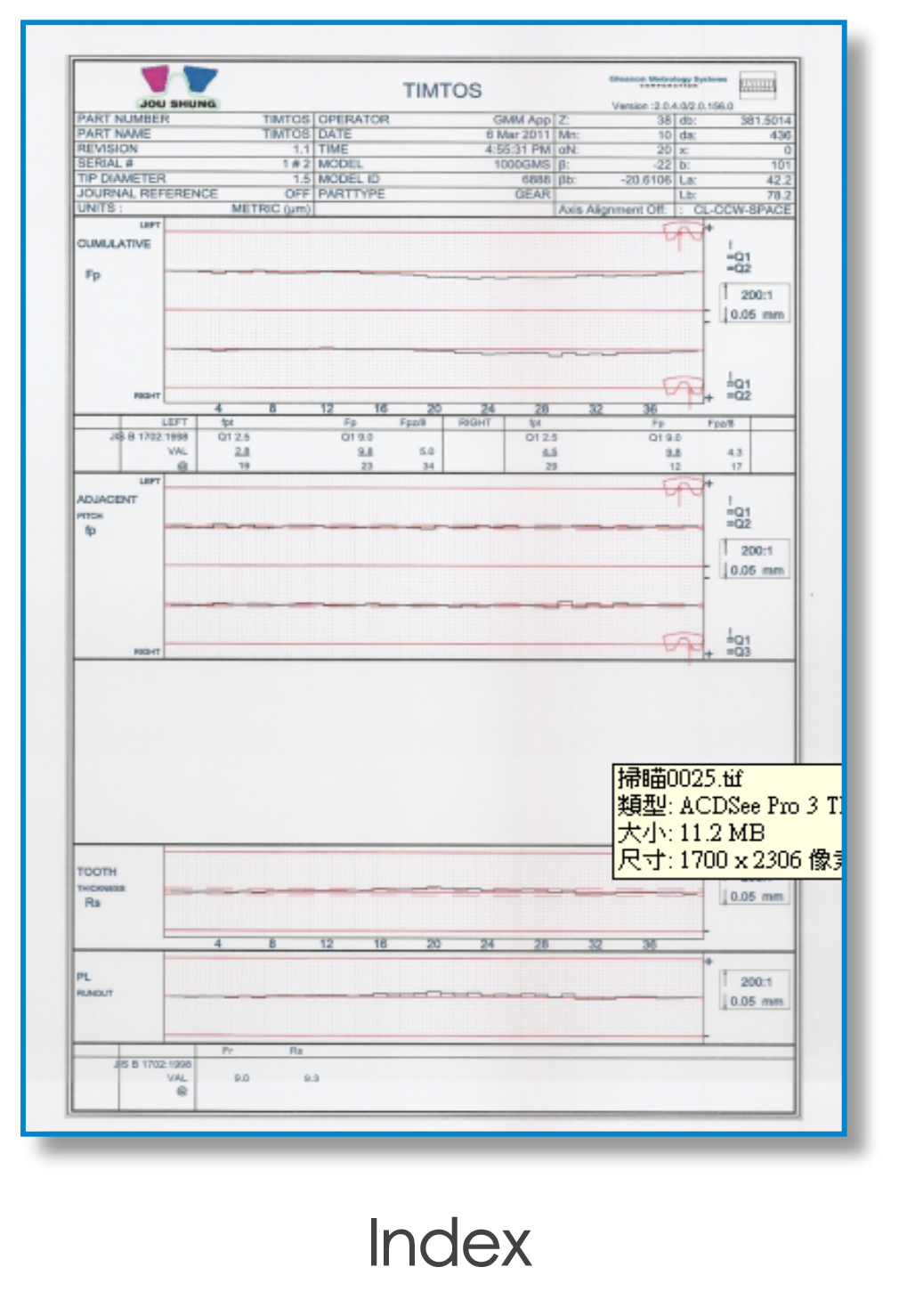

檢測機
inspection Machine
×
| DEVICE | ITEM | Function |
|---|---|---|

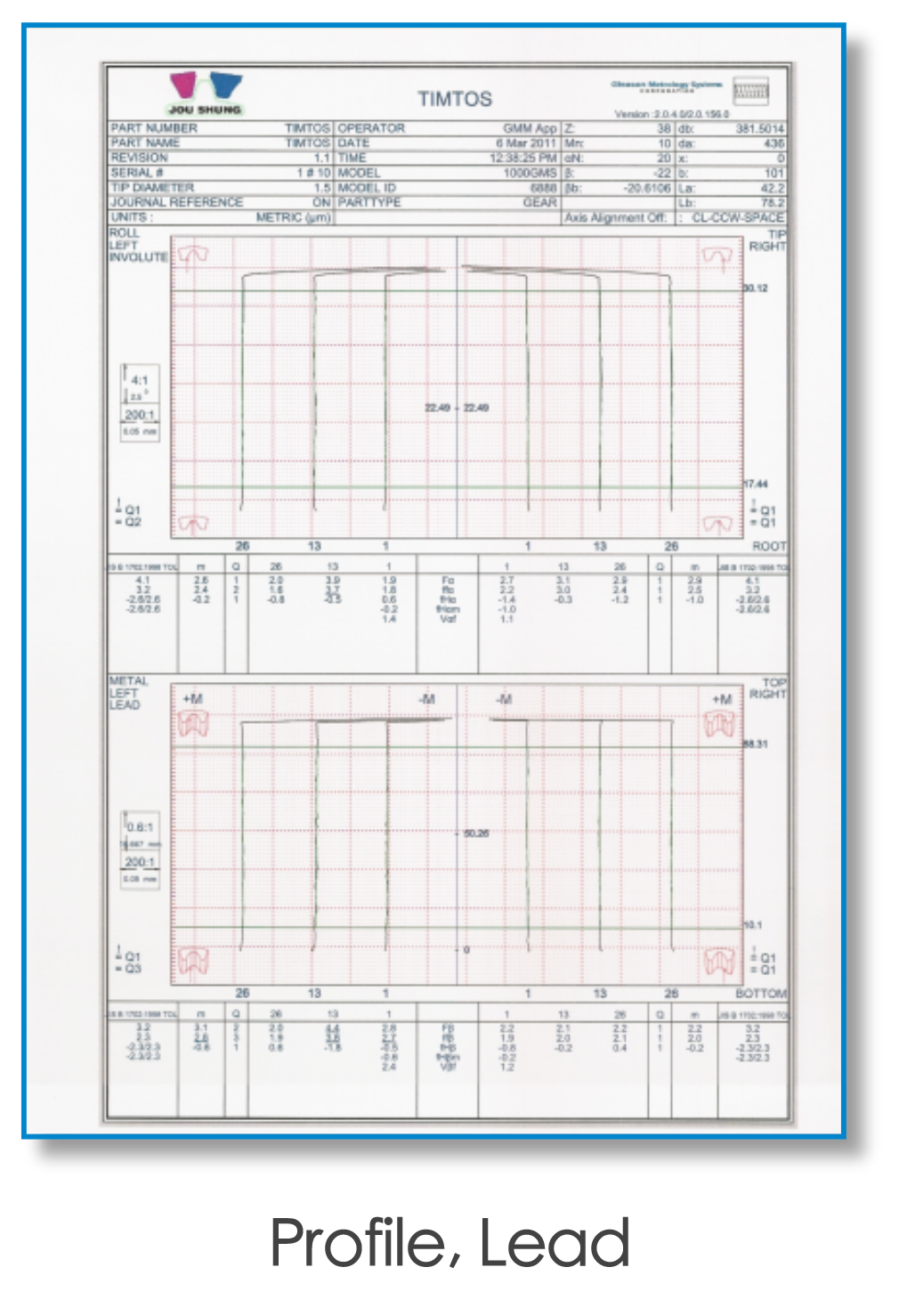

| Gleason 1000GMS | INSPECTION |
Gear , Worm shaft and Worm gear, Bevel gear, Unknown gear , Hob, Shaper, Keyway.
|
鍵槽拉削機
broach & slotting machines
×
| DEVICE | ITEM | WORKING RANGE |
|---|---|---|
| CF-90/700-013 | KEYWAY | (W)8～63mm (L)700mm |
| CF-100/700-017 | KEYWAY | (W)10～70mm (L)700mm |
| CSL-400S CNC | KEYWAY | (W)5～50mm (L)400mm |

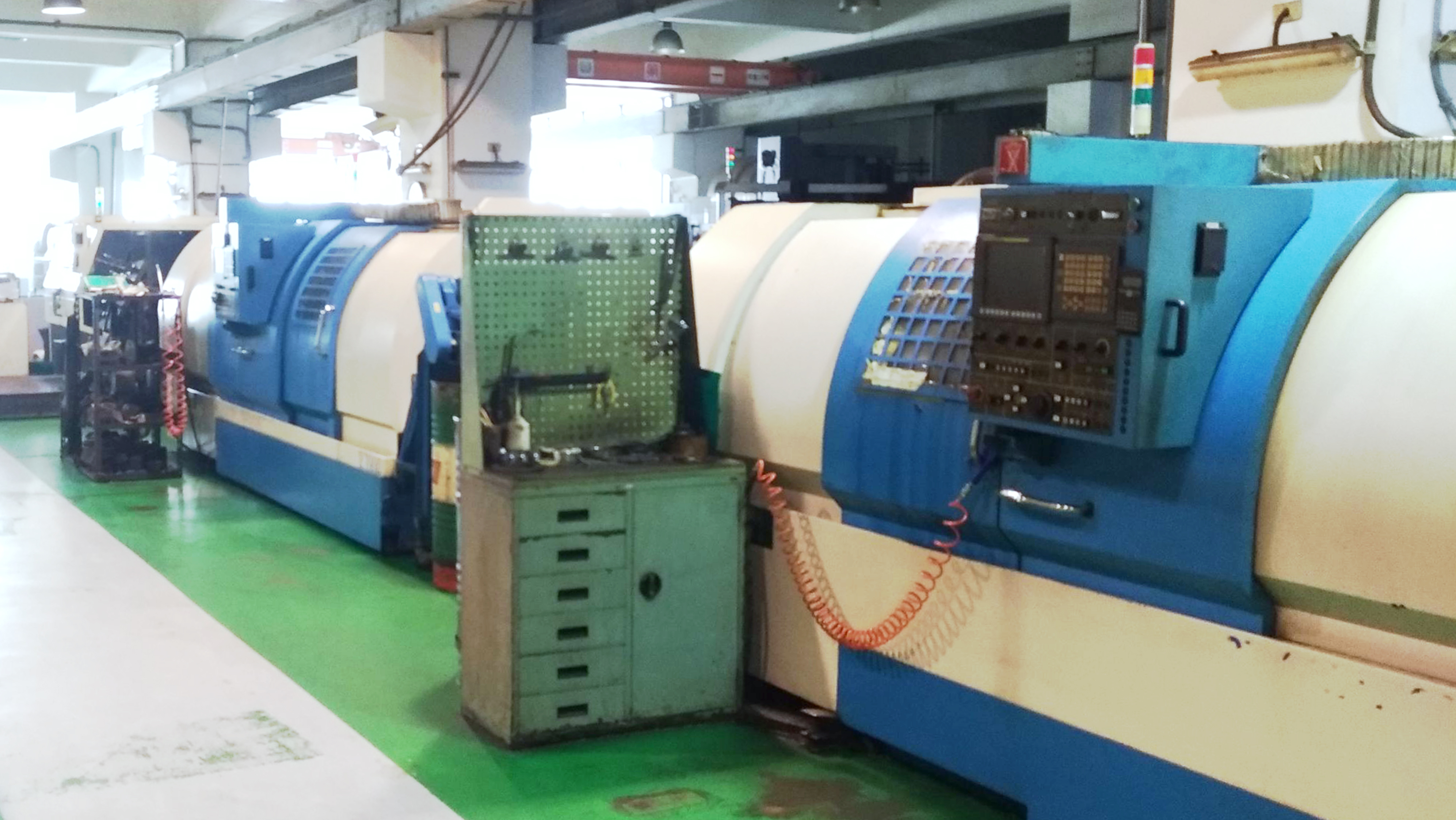

CNC 車床機
CNC Lathe machines
×
| DEVICE | ITEM | WORKING RANGE |
|---|---|---|
| CL38Cx2000 | KINWA | Φ660mm x Φ370mm x Φ2130mm |
| CL38Ax1500 | KINWA | Φ660mm x Φ370mm x Φ1630mm |
| CL320x1100 | KINWA | Φ550mm x Φ470mm x Φ1080mm |
| CHD-660 | KINWA | Φ660mm x Φ4450mm x Φ1443mm |
| CH-530 | KINWA | Φ532mm x Φ368mm x Φ1667mm |

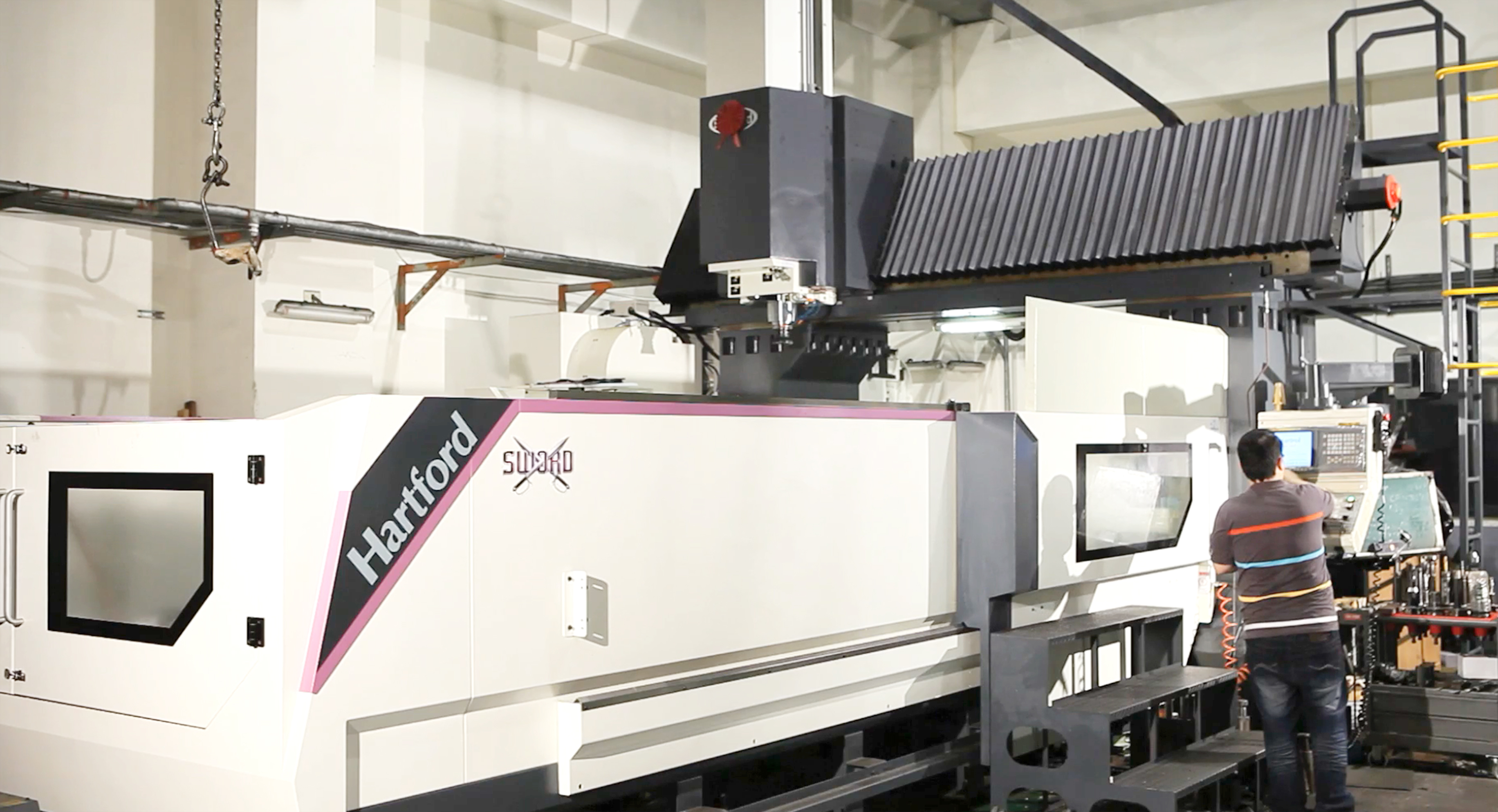

CNC 銑床機
Milling machines
×
| DEVICE | ITEM | WORKING RANGE |
|---|---|---|
| VMC-1300 | Hartford | 1300mm x 610mm x 610mm |
| HCMC-13 | Hartford | 1370mm x 650mm x 630mm |
| SW-426 | Hartford | 4050mm x 3400mm x 700mm |

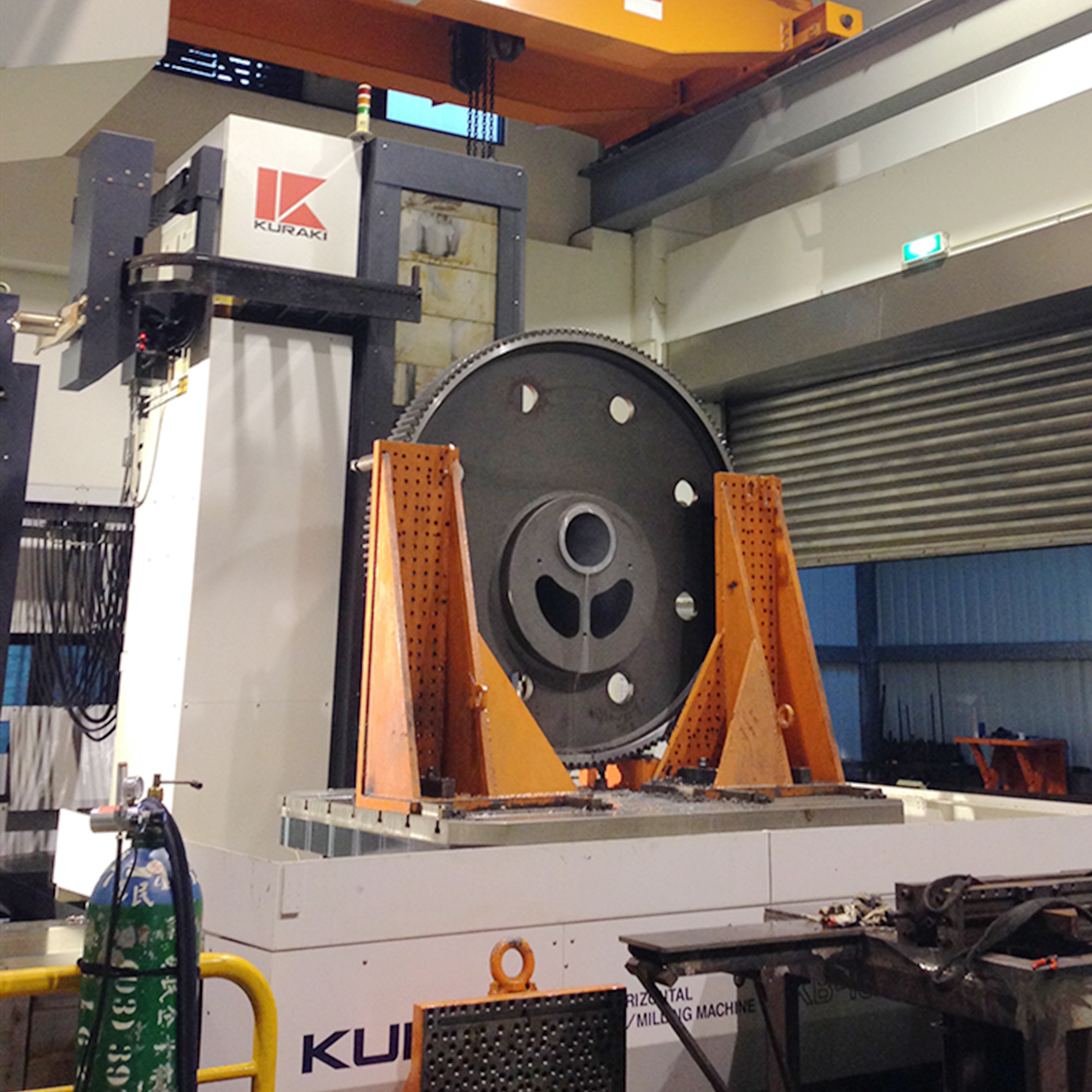

| AKB-13 | KURAKI | 3000mm x 2000mm x 1600mm |
